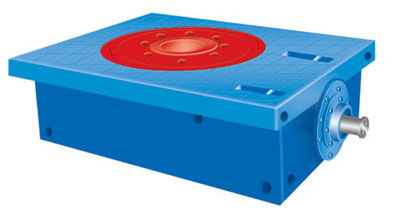

轉盤設計特點 Rotary Tables Design Features
●大、小齒輪均為合金鋼材料制成。
●整體主補心為鑄鋼件。
●銷傳動型式可放入API標準方鉆桿或六方鉆桿的滾子補心,長、短卡瓦均可使用。
●轉盤潤滑充分、密封可靠。
●The pinion and gear are made of alloy steel.
●The master bushing is made form a steel casting.
●Pin transmission type is suitable for APl standard square Kelly or hexagonal Kelly roller bushing.
●Effective lubrication and reliable seals are provided by design.

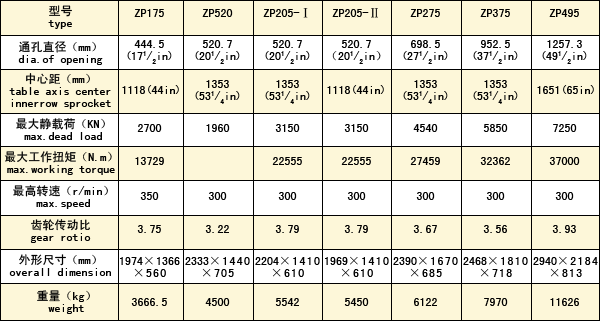

轉盤參數表 Specifications of Rotary Tables
